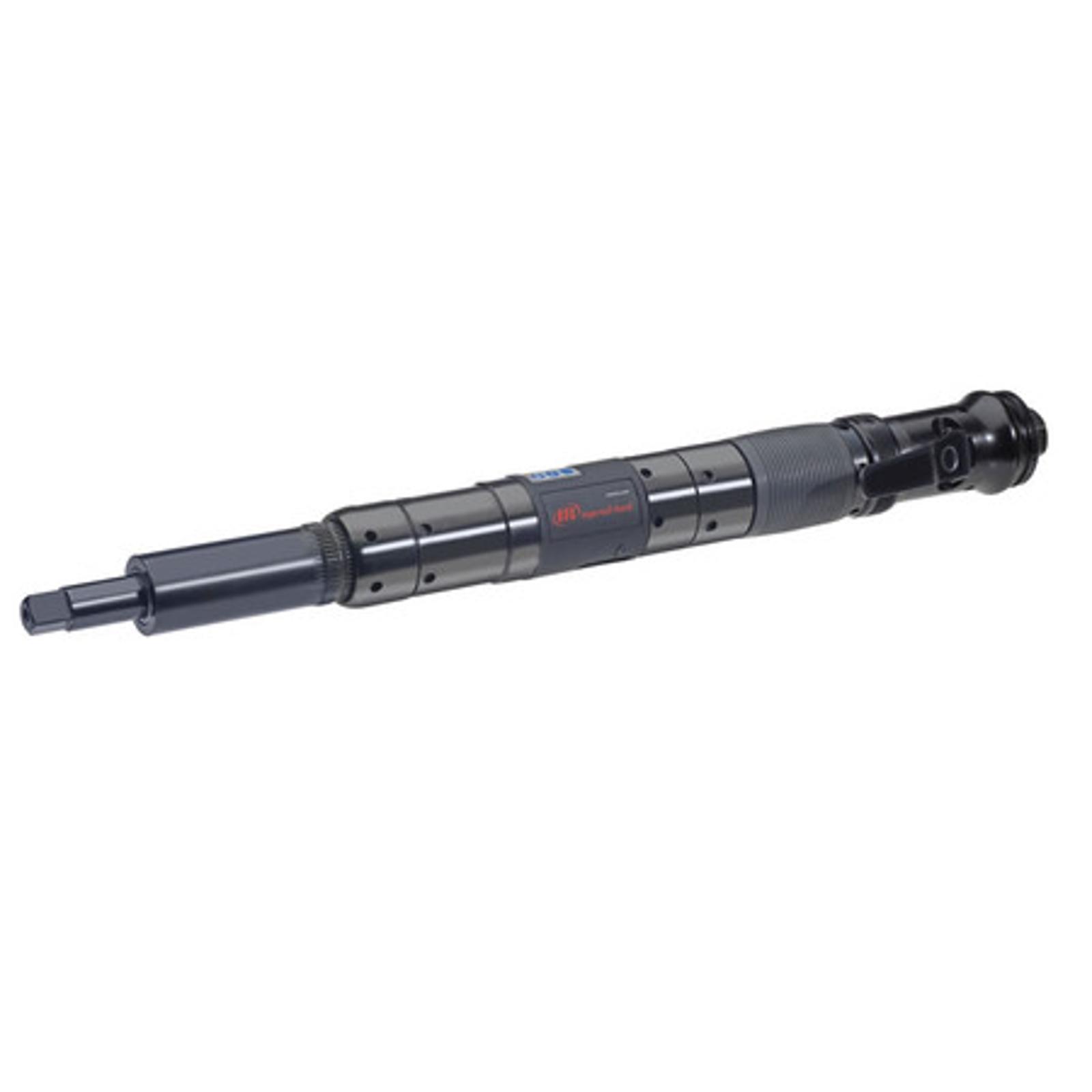

This handheld inline nutrunner is designed for comfort and strength. The standard 4” inline spindle provides 19mm of float to accommodate faster rundown, while the adjust shut-off reduces air consumption and limits torque reaction. Multiple mounting flange options make this tool suitable for many applications.
Accurate:
Durability:
Easy to Maintain:
Model | Actuation | Torque Range (Nm) | Torque Range (ft-lb) | Torque Range (in-lb) | Free Speed (rpm) | Weight (kg) | Weight (lb) | Length (mm) | Length (in) | Head Side to Center (mm) | Head Side to Center (in) | Air Inlet | cfm | Spindle Type | Common Fastener Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QA4ASLS012BP41S04 | Lever Start | 6 - 12 | 4.4 - 8.8 | 1050 | 1.3-1.5 | 3.22 | 464 | 18.3 | 21 | 0.81 | 1/4 in. BSP | 29 | 1/4 in. Square | M4 - M5 | 79.3 |
QA4ASLS015BP41S04 | Lever Start | 7 - 15 | 5.2 - 11.1 | 850 | 1.3-1.5 | 3.22 | 464 | 18.3 | 21 | 0.81 | 1/4 in. BSP | 29 | 1/4 in. Square | M5 - M6 | 79.3 |
QA4ASLS020BP41S06 | Lever Start | 10 - 20 | 7.4 - 14.8 | 600 | 1.3-1.5 | 3.22 | 464 | 18.3 | 21 | 0.81 | 1/4 in. BSP | 29 | 3/8 in. Square | M6 - M8 | 79.3 |
QA4ASLS027BP41S06 | Lever Start | 14 - 27 | 10.3 - 19.9 | 450 | 1.3-1.5 | 3.22 | 464 | 18.3 | 21 | 0.81 | 1/4 in. BSP | 29 | 3/8 in. Square | M8 | 79.3 |
QA4ASLS046BP41S06 | Lever Start | 20 - 46 | 14.8 - 33.9 | 250 | 1.3-1.5 | 3.73 | 478 | 18.8 | 23 | 0.91 | 1/4 in. BSP | 29 | 3/8 in. Square | M8 | 79.3 |
