117 Standard Air Hammer | Ingersoll Rand Power Tools

117K_Air Hammer

117K_Air Hammer

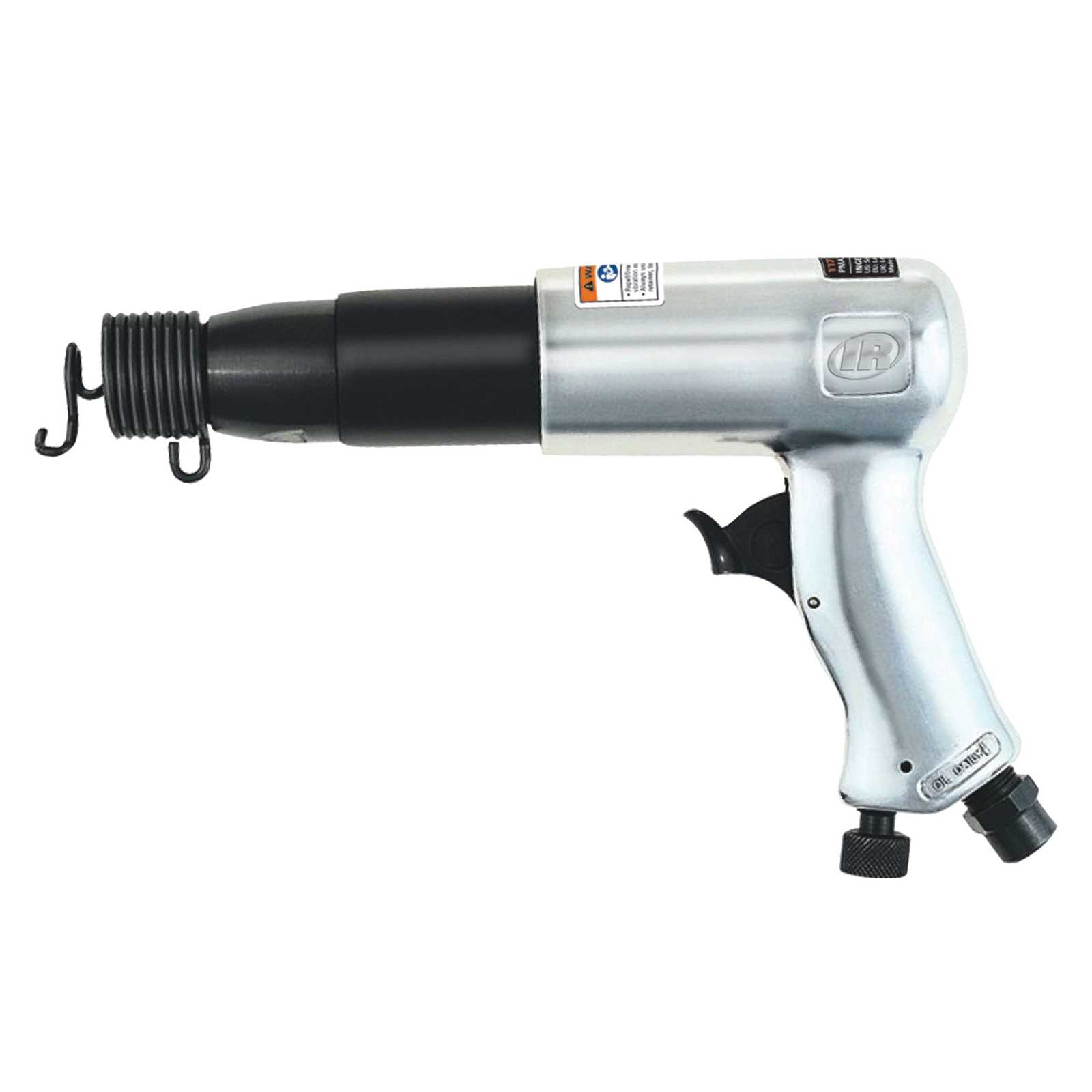

The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.

Request Service, Parts or Support

Reliable:

We promise tools that last, and this hammer is no different. You can count on it to perform the same way every time.

2,000 Blows per Minute:

This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.

Longer Life:

To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.

Model	Shank Opening	Blows per Minute	Bore Diameter (in)	Bore Diameter (mm)	Stroke Length (in)	Stroke Length (mm)	Tool Weight (lbs)	Tool Weight (kg)	Overall Length (in)	Overall Length (mm)	Average Air Consumption (cfm)	Average Air Consumption (L/min)	Air Consumption @ Load (cfm)	Air Consumption @ Load (L/min)	Sound Pressure/Power (dBA)	Vibration m/s2 (uncertainty K)	Air Inlet NPTF (in)	Min. Hose Size (in)	Min. Hose Size (mm)
117	Round	2000	0.69	17	3.5	89	4.1	1.86	9.9	251	3	85	14	396	103.5 / 116.5	9.2 (uncertainty: 3.0)	1/4	3/8	10
