Łatwość serwisowania
Dzięki łatwości obsługi realizacja harmonogramu konserwacji zapobiegawczej jest błyskawiczna. Pozwala to przeznaczyć więcej czasu na produkcję.

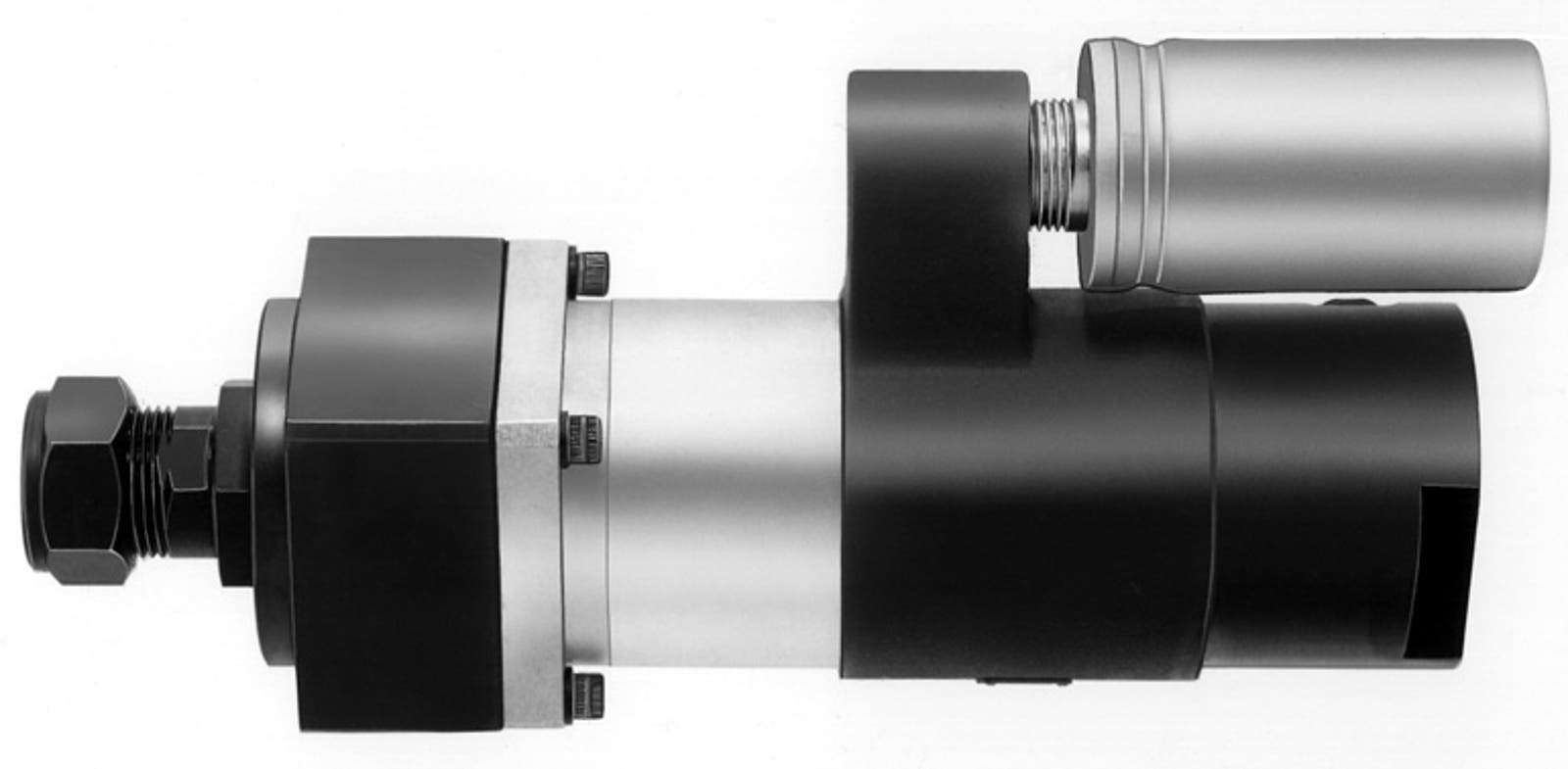

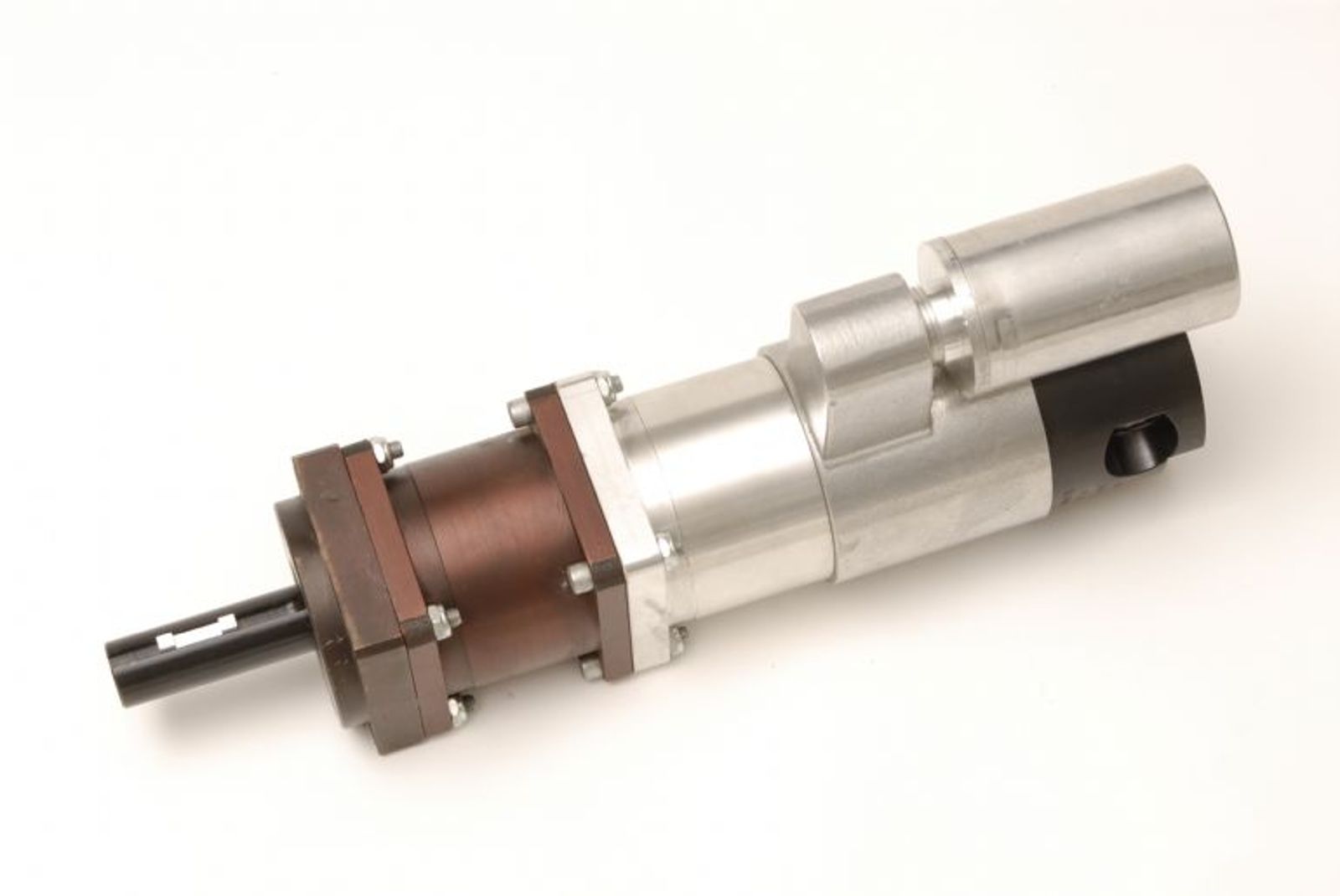

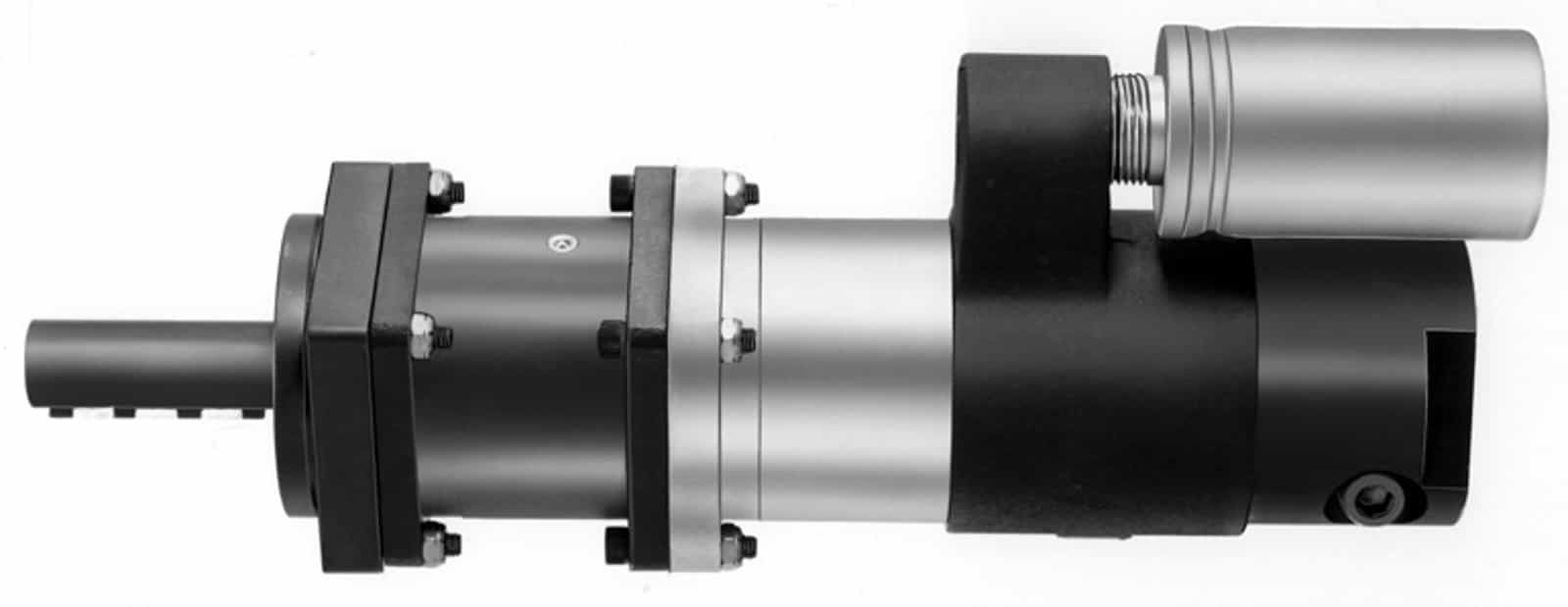

Silniki pneumatyczne serii 44
Ten wytrzymały, solidny silnik obsługuje wysoki moment obrotowy i zmienne prędkości.
Model | Max. Power (hp) | Max. Power (kw) | Reversible | Torque Stall (ft-lb) | Torque Stall (Nm) | Free Speed (rpm) | Torque Output @ Max. H.P. (ft-lb) | Torque Output @ Max. H.P. (Nm) | Speed at Max. Power (rpm) | Spindle | Air Consumption at Max. Power (scfm) | Air Consumption at Max. Power (m³/m) | Air Consumption @ Free Speed (scfm) | Air Consumption @ Free Speed (L/s) | Sound Level @ Free Speed dB(A) | Weight (lb) | Weight (kg) | Length (in) | Length (mm) | Diameter/Width (in) | Diameter/Width (mm) | Gear Reduction | In Line Motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8200-4A() | 2 | 1.49 | No | 124 | 168 | 275 | 62 | 101.6 | 140 | 3/4 in. Maximum Collet Capacity | 95 | 44.8 | 80 | 18.24 | 8.2 | 14.5 | 368.3 | 5.44 | 138.2 | Double | Yes | ||
8202-4A() | 2 | 1.49 | No | 40.5 | 54.9 | 900 | 20.25 | 32.5 | 445 | 3/4 in. Maximum Collet Capacity | 95 | 44.8 | 80 | 18.24 | 8.2 | 14.5 | 368.3 | 5.44 | 138.2 | Double | Yes | ||
8203-4A() | 2 | 1.49 | No | 18 | 24.4 | 2000 | 9 | 13.5 | 1050 | 3/4 in. Maximum Collet Capacity | 95 | 44.8 | 80 | 13.82 | 5.21 | 11.69 | 296.9 | 5.44 | 138.2 | Single | Yes | ||
8204-4A() | 2 | 1.49 | No | 10.2 | 13.8 | 3500 | 5.1 | 8.1 | 1740 | 3/4 in. Maximum Collet Capacity | 95 | 44.8 | 80 | 13.82 | 5.21 | 11.69 | 296.9 | 5.44 | 138.2 | Single | Yes | ||
8205-4A() | 2 | 1.49 | No | 2.85 | 3.9 | 14000 | 1.425 | 2 | 7000 | 3/4 in. Maximum Collet Capacity | 95 | 44.8 | 80 | 13.82 | 5.21 | 11.69 | 296.9 | 5.44 | 138.2 | Single | Yes |
