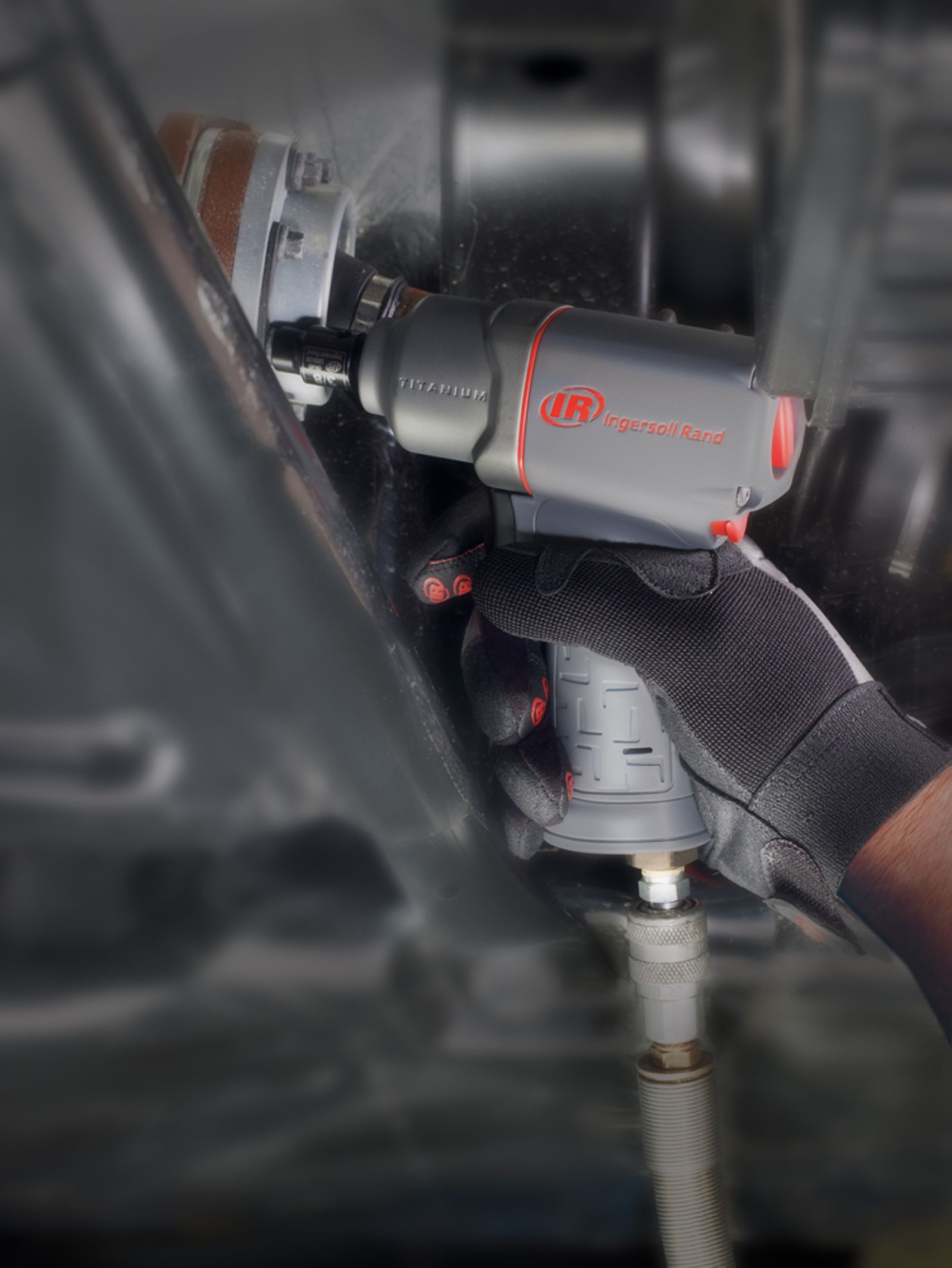

2115TiMAX Series Air Impact Wrench

The 2115TiMAX delivers best-in-class performance for a tool less than six inches long and weighing less than two and a half pounds. The minimal size of this tool allows greater access to tight spaces, while the minimal weight reduces operator fatigue... all while still delivering MAX performance.

Durable:

  • With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.

Versatile:

  • This tool is so versatile, it can be used in just about any market.

Reliable:

  • This wrench has been tested and is guaranteed to last. It’ll deliver the same level of power every time.

Other Features:

  • Easier access to grease fitting – for quicker maintenance and less downtime
  • Enhanced socket retention
  • 7-vane Motor delivers added power with less weight
  • Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
  • Feather-touch trigger provides maximum control of this air impact wrench
  • Anodized end plate for enhanced durability
  • Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
  • Patented one-hand forward/reverse control for easy operation
  • Optimized air flow for maximized performance when using this pneumatic impact wrench
  • 2-year warranty

Model

Configuration

Actuation

Drive Size (in)

Drive Type

Max Forward Torque ft-lbs (Nm)

Max Reverse Torque ft-lbs (Nm)

Blows Per Minute

Free Speed (RPM)

Impacting Sound Level dB(A) -- ISO15744 (pressure/power)

Free Speed Sound Level dB(A) -- CAGI/ANSI S12.41 (pressure/power)

Vibration Level m/s2 (K)

Weight lbs (kg)

Length in (mm)

Air Inlet NPT (in)

Min Hose Size (in)

Air Consumption @ Load cfm (L/min)

Avg Air Consumption cfm (L/min)

PSI

Bar

2115TiMAX

Pistol

Trigger

3/8

Square, Friction Ring

250 (339)

300 (407)

1500

15000

96.6 / 107.6

106.3 / 117.3

7.8 (1.8)

2.48 (1.12)

6 (152)

1/4

3/8

17 (481)

4 (113)

90

6.2

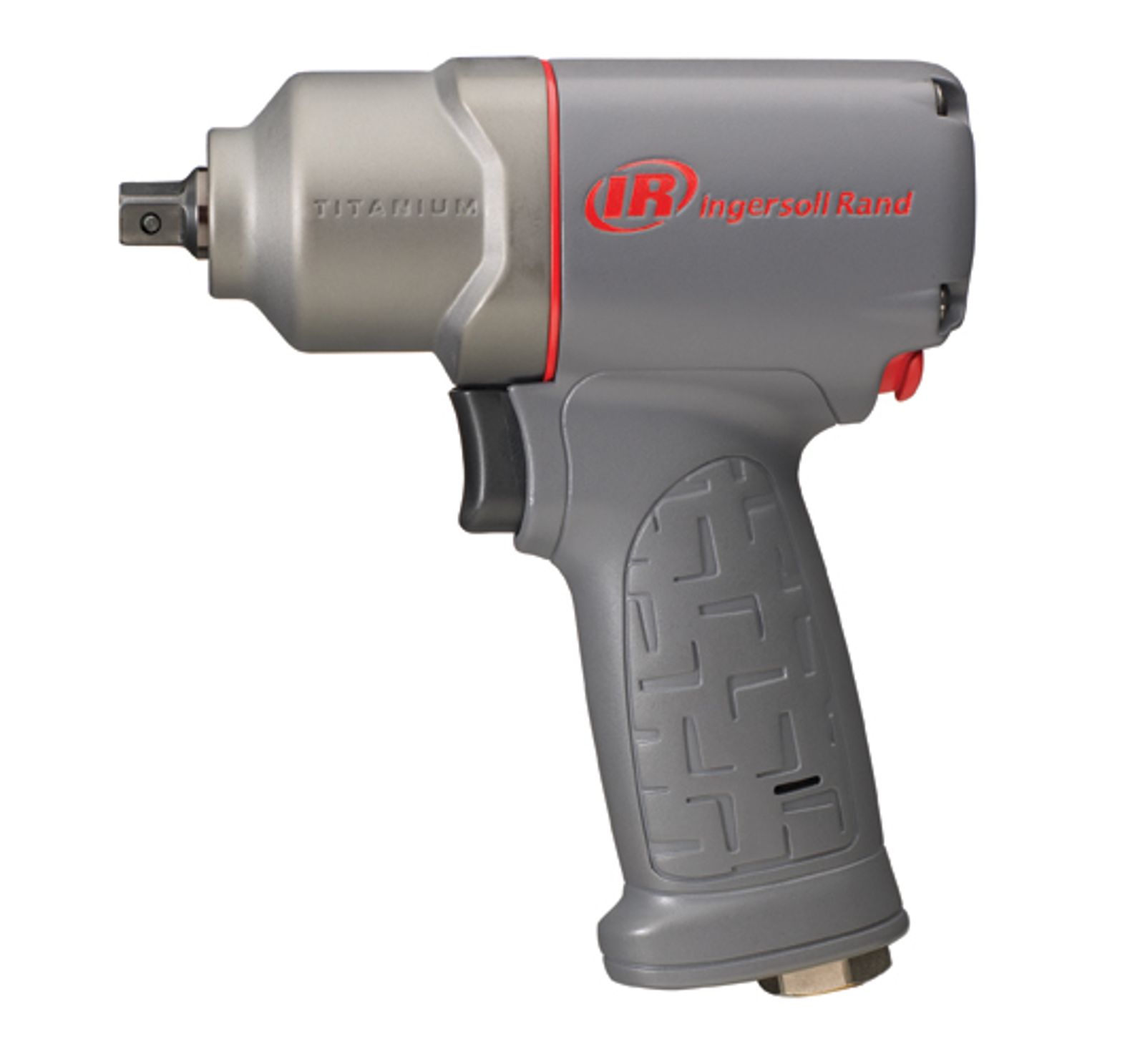

2115PTiMAX

Pistol

Trigger

3/8

Square, Pin

250 (339)

300 (407)

1500

15000

93.2 / 104.2

89.7 / 100.7

7.8 (1.8)

2.48 (1.12)

5.9 (150)

1/4

3/8

17 (481)

4 (113)

90

6.2

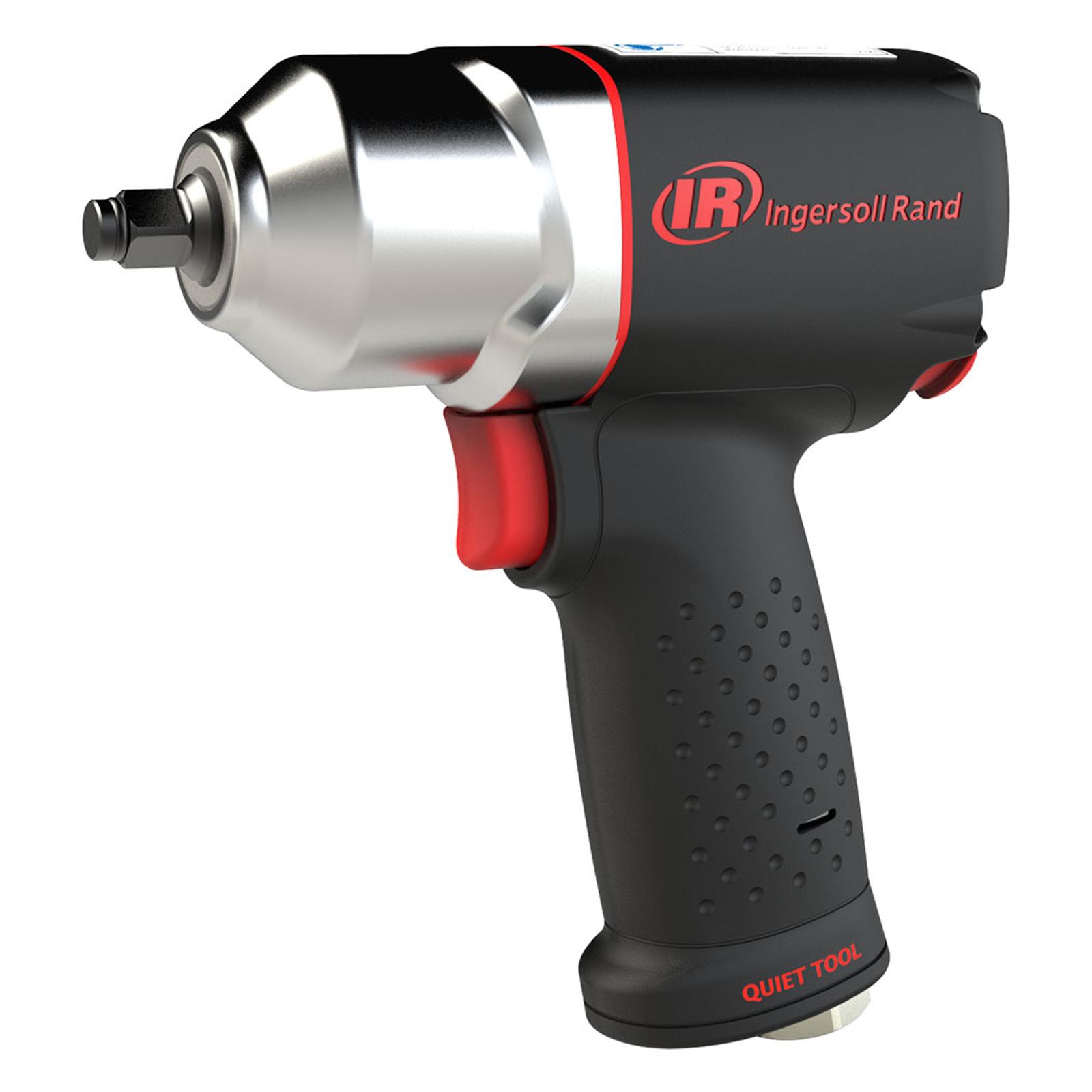

2115QTiMAX

Pistol

Trigger

3/8

Square, Friction Ring

250 (339)

300 (407)

1500

15000

93.2 / 104.2

89.7 / 100.7

7.8 (1.8)

2.48 (1.12)

6 (152)

1/4

3/8

17 (481)

4 (113)

90

6.2

2125PTiMAX

Pistol

Trigger

1/2

Square, Pin

277 (375)

332 (450)

1500

15000

93.2 / 104.2

89.7 / 100.7

7.8 (1.8)

2.51 (1.14)

6.1 (155)

1/4

3/8

17 (481)

4 (113)

90

6.2

2125QTiMAX

Pistol

Trigger

1/2

Square, Friction Ring

277 (375)

332 (450)

1500

15000

93.2 / 104.2

89.7 / 100.7

7.8 (1.8)

2.51 (1.14)

6.1 (155)

1/4

3/8

17 (481)

4 (113)

90

6.2
