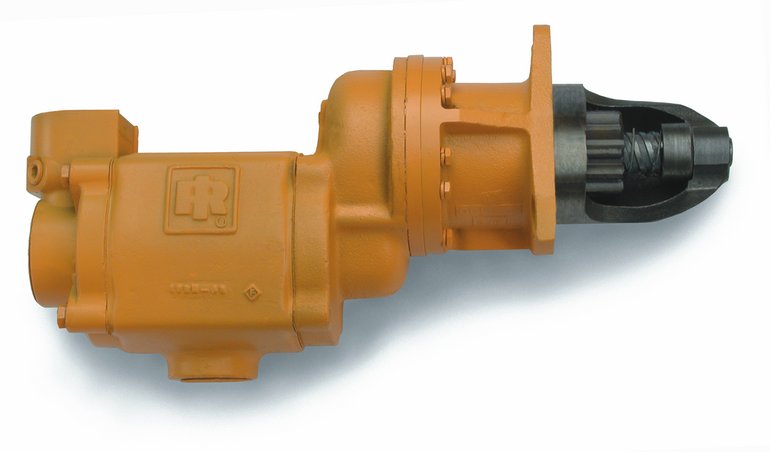

150BM Series Air Starter, 16-32 hp

The 150BM Series features an inline design, equipped with a vane motor and standard caged nose.

Safety:

Durable:

Reliable:

Versatile:

With both pre-engage and inertia engagement types, as well as counterclockwise and clockwise rotation options, the 150BM Series can be modified to suit your needs.

Model	Pressure (PSI)	Pressure (bar)	Breakaway Torque (ft-lb)	Breakaway Torque (Nm)	Max Power (HP)	Max Power (kW)	Speed @ Max HP (RPM)	Flow at Max HP (SCFM)	Flow at Max HP (L/s)
150BMGE/150BMPE	90	6.2	100	136	16	12	1700	380	179
150BMGE/150BMPE	120	8.3	130	176	24	18	1900	500	236
150BMGE/150BMPE	150	10.3	155	210	32	24	2200	680	321
150BMPD	90	6.2	110	149	16	12	1500	370	175
150BMPD	120	8.3	145	196	24	18	1700	500	236
150BMPD	150	10.3	175	237	32	24	1900	650	307
