6 Series Pistol-Grip Drills

The 6 Series Pistol drills are easy to hold and easy to use. These drills will deliver time and time again.

Versatile:

With variable speed control and a number of different models, you’ll be able to find the perfect drill for any application.

Performance:

Equipped with double row ball bearings, you can count on these tools to deliver precise, concentric holes every time.

Durable:

The high quality chuck used in these tools make for durable tools that can withstand harsh environments.

Model	Actuation	Reversible	Max. Working Torque (Nm)	Max. Working Torque (in-lb)	Free Speed (rpm)	Weight with Chuck (kg)	Weight with Chuck (lb)	Length with Chuck (mm)	Length with Chuck (in)	Bit Holder Capacity (in)	Bit Holder Capacity (mm)	Side to Center (mm)	Side to Center (in)	Sound Level dB(A)	Rated Power (hp)	Air Inlet	cfm
6AJJST4	Trigger Start	No	4.1	34	3950	1	2.2	178	7	1/4	6	21	0.8	74	0.51	1/4 in. NPT	20
6AKST4	Trigger Start	No	5.1	45.1	3100	1	2.2	178	7	1/4	6	21	0.8	74	0.51	1/4 in. NPT	20

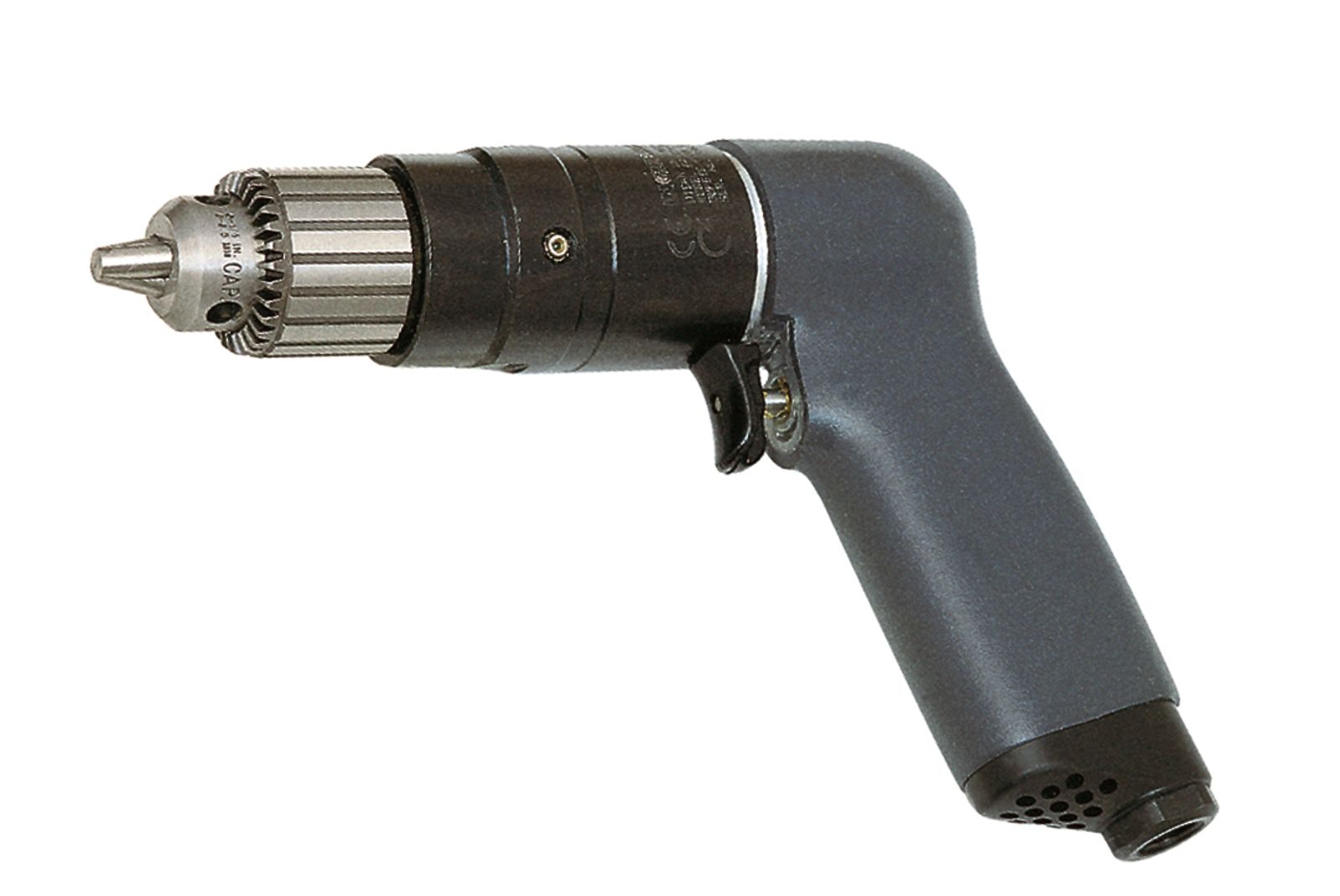

6ALST4	Trigger Start	No	7.3	64.6	2150	1	2.2	178	7	1/4	6	21	0.8	74	0.51	1/4 in. NPT	20
6AMST6	Trigger Start	No	10.1	89.4	1500	1.3	2.8	203	8	3/8	10	21	0.8	74	0.51	1/4 in. NPT	20
6ARST6	Trigger Start	No	25.1	222.2	500	1.4	3	210	8.3	3/8	10	21	0.8	74	0.51	1/4 in. NPT	20
6ASST6	Trigger Start	No	35.7	316	350	1.4	3	210	8.3	3/8	10	21	0.8	74	0.51	1/4 in. NPT	20
