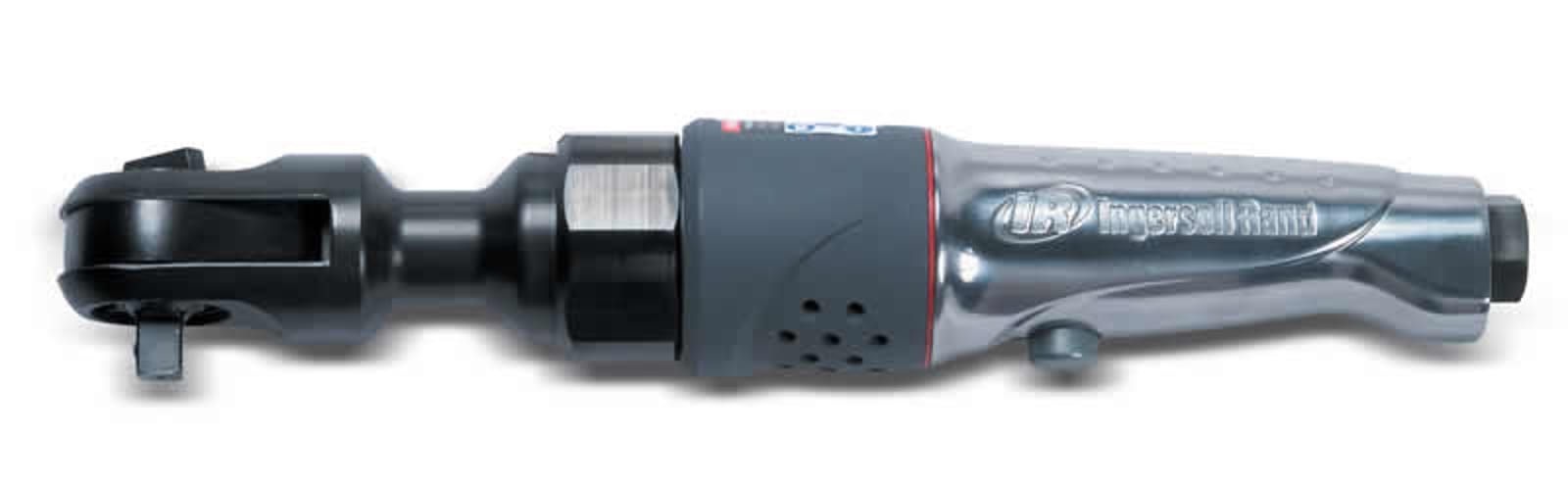

109XPA & 1099XPA High Torque Air Ratchet Wrench

The 109XPA and 1099XPA ratchet wrenches provide an optimized gear ratio and airflow for exceptional performance and durability with 76 ft-lb maximum torque. The 109 model offers a 3/8” drive, while the 1099 model sports a 1/2” version.

360-Degree Exhaust:

  • The adjustable exhaust on the 109XPA and 1099XPA high torque ratchet wrenches directs air flow away from you and your workspace.

Low Profile Forward/Reverse Control:

  • The 109XPA and 1099XPA forward/reverse control has a wide diameter for increased ease of use in confined spaces.

Increased Reach:

  • Enjoy easier access to deep, hard to reach spaces with these high torque ratchet wrenches.

Model

Drive Size (in)

Switch Type (actuation)

Free Speed (rpm)

Recomm. Torque Range (ft-lb)

Recomm. Torque Range (Nm)

Max Torque (ft-lb)

Max Torque (Nm)

Free Speed Sound Level (dBA)

Vibration Level m/s2 (K)

Weight (lb)

Weight (kg)

Length (in)

Length (mm)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

Free Speed Air Consumption (cfm)

Free Speed Air Consumption (L/min)

Air Inlet NPTF (in)

Min Hose Size (in)

Min Hose Size (mm)

1099XPA

1/2

Button actuation; variable speed

220

10-60

14-81

76

103

92.4

2.5 (0.7)

3.3

1.5

12

305

4

113

24

680

1/4

3/8

10

109XPA

3/8

Button actuation; variable speed

220

10-60

14-81

76

103

92.4

2.5 (0.7)

3.3

1.5

12

305

4

113

24

680

1/4

3/8

10
