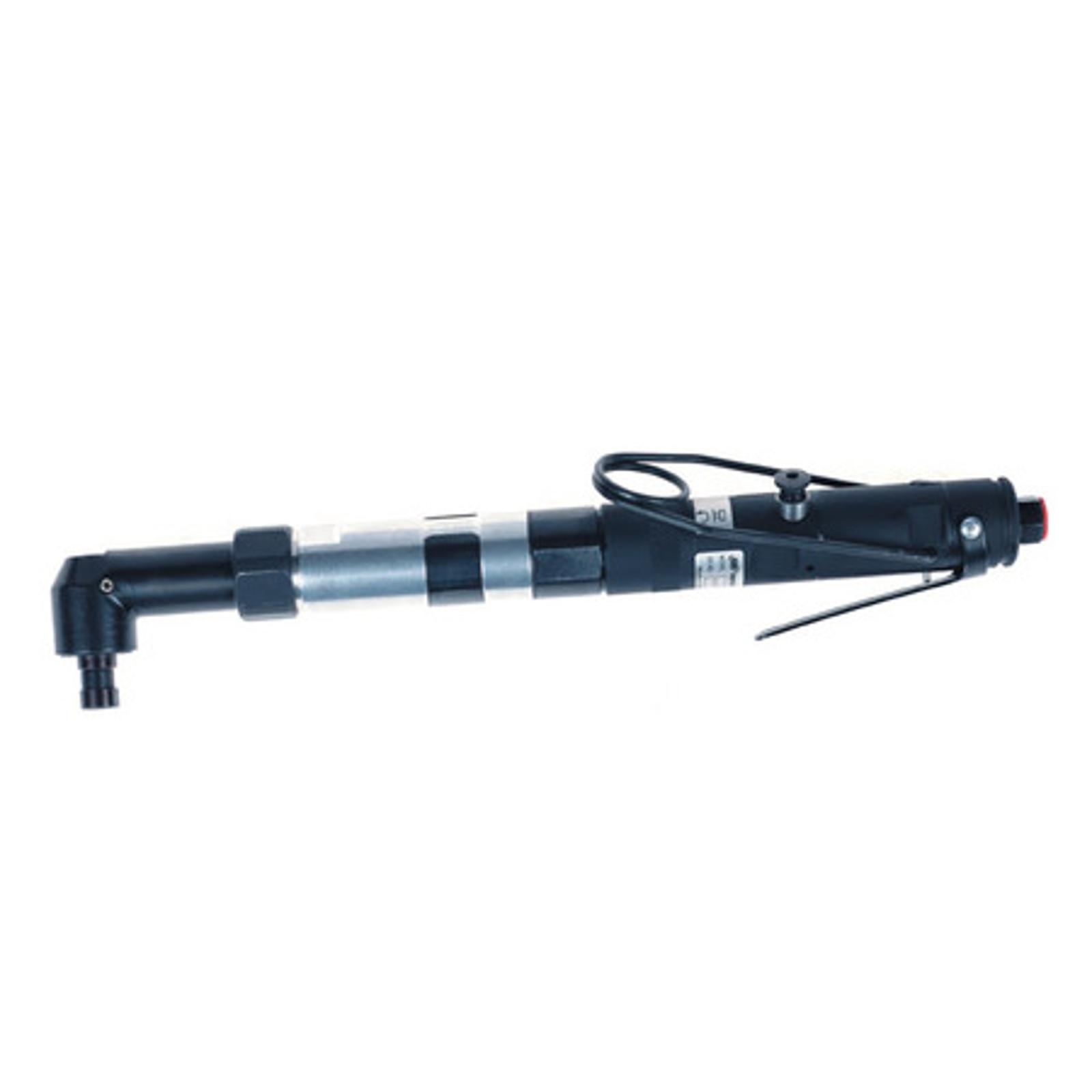

Q2 Series Handheld Angle Adjustable Shut-Off Air Nutrunner

air nutrunners QA1L18S9LDSCREWDRIVERP001l

The Q2 Series Angle Adjustable Shut-off nutrunners are quiet with a comfortable design that delivers a powerful performance on every job. With an adjustable shutoff clutch, high speeds, and a reliable performance, you can work safely, quickly, and accurately.

Request a Quote Request Service, Parts or Support

Performance
For all your fastening jobs, speeds of 250 to 1,750 rpm give you the power the task demands.

Ergonomic Grip
This tool is made to fit comfortably in your hand for a secure hold as you work.

Accuracy
Expect the same results each time, and this tool will deliver.

Compact
The smaller dimensions are ideal for easy transportation and storage.

Lightweight
Work all day without being weighed down.

Well-Balanced Design
This tool is steady in your hand for a comfortable, stable feel each time

Model	Actuation	Torque Range (Nm)	Torque Range (in-lb)	Free Speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	Length (in)	Angle Head Side to Center (mm)	Angle Head Side to Center (in)	Angle Head Height (mm)	Angle Head Height (in)	Air Inlet	cfm	Spindle Type	Sound (dBA)
QA1L02S1LD	Lever Start	0.4 - 6.37	3.5 - 56.4	250	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L02S1XLD	Lever Start	1.32 - 11.5	11.7 - 101.5	250	1.04	2.3	330	13	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L02S6XLD	Lever Start	1.32 - 11.5	11.7 - 101.5	250	1.04	2.3	330	13	13.2	0.52	33	1.3	1/4 in. NPT	16	3/8 in. Square	75
QA1L05S1LD	Lever Start	0.4 - 6.37	3.5 - 56.4	500	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L05S1XLD	Lever Start	1.32 - 9.98	11.7 - 88.3	500	1.04	2.3	330	13	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L05S4LD	Lever Start	0.4 - 6.4	3.5 - 56.4	500	0.9	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Square	75
QA1L05S6LD	Lever Start	0.4 - 6.37	3.5 - 56.4	500	0.9	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	3/8 in, Square	75
QA1L05S6XLD	Lever Start	1.32 - 9.98	11.7 - 88.3	500	1.04	2.3	330	13	13.2	0.52	22	1.3	1/4 in. NPT	16	3/8 in. Square	75
QA1L08S1LD	Lever Start	0.4 - 5.33	3.5 - 47.2	850	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L08S4LD	Lever Start	0.4 - 5.33	3.5 - 47.2	850	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Square	75
QA1L08S6LD	Lever Start	0.4 - 5.33	3.5 - 47.2	850	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	3/8 in. Square	75
QA1L12S1LD	Lever Start	0.4 - 3.7	3.5 - 32.2	1270	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Hex Quick Change	75
QA1L12S4LD	Lever Start	0.4 - 3.7	3.5 - 32.2	1270	1	2.1	302.3	11.9	13.2	0.52	33	1.3	1/4 in. NPT	16	1/4 in. Square	75
QA1L12S4SD	Lever Start	0.4 - 3.7	3.5 - 32.2	1270	0.9	1.9	300	11.8	9.5	0.38	28	1.1	1/4 in. NPT	16	1/4 in. Square	75
