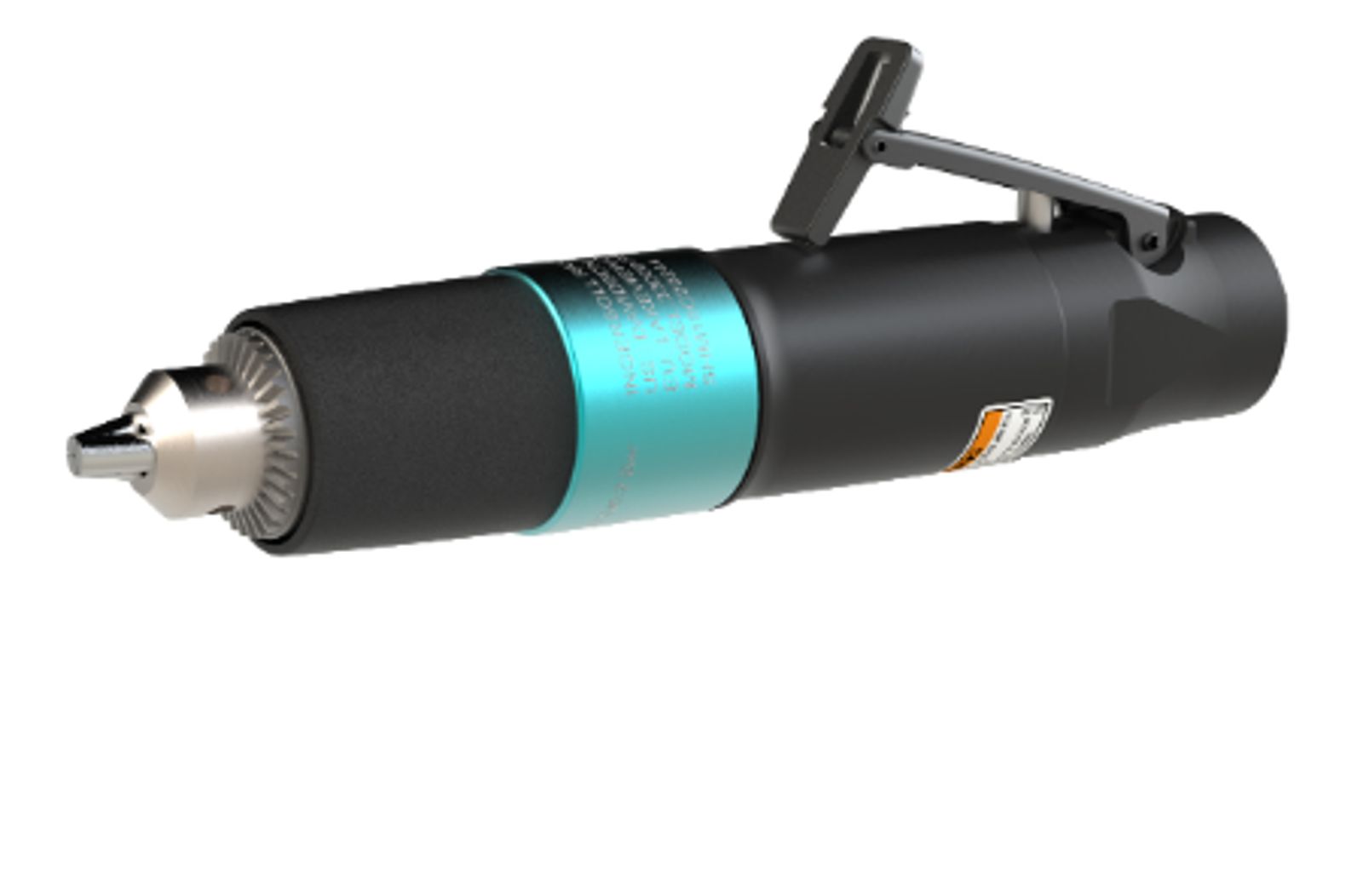

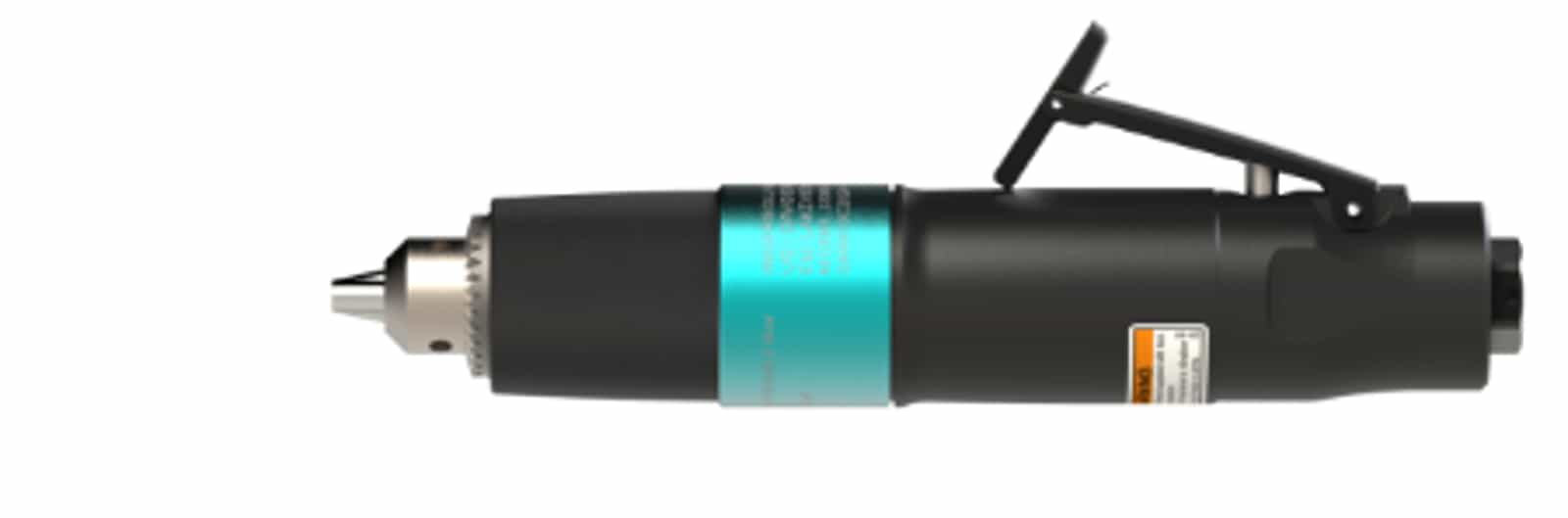

P33N DSL Precision Drill, Non Modular, Straight

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

P33N Series the New Generation of Precision Drills:

  • When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.
  • The Ingersoll Rand P33N drill range, originates as an evolution from successful P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.

Flexibility and Interchangeability:

  • One motor type 330W
  • Pistol, Straight or Angle version
  • Wide range of speeds available, from 660 to 18000 rpms
  • 30°, 90°, 180° angle heads
  • P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements

Operator Comfort and Ergonomics:

  • Lube free motor for a clean working environment
  • Soft touch housing for better ergonomic grip

Economic Effectiveness:

  • P33N range share same motor and gears to reduce inventory cost

Model

Speed (rpm)

Torque (Nm)

MAX capacity (mm)

Weight (Kg)

Length (mm)

Side to center distance (mm)

Air consumption (l/s)

Chuck finger protection

P33N006-DSL

660

16.0

10

0.78

235

20

10

P33N011-DSL

1100

9.5

10

0.78

235

20

10

P33N016-DSL

1600

6.8

8

0.78

227

20

10

Y

P33N022-DSL

2200

4.5

8

0.65

212

20

10

Y

P33N032-DSL

3200

3.2

6

0.64

212

20

10

Y

P33N054-DSL

5400

1.9

6

0.65

212

20

10

Y

P33N110-DSL

11000

0.9

6

0.72

227

20

10

Y

P33N180-DSL

18000

0.6

6

0.63

212

20

10

Y
