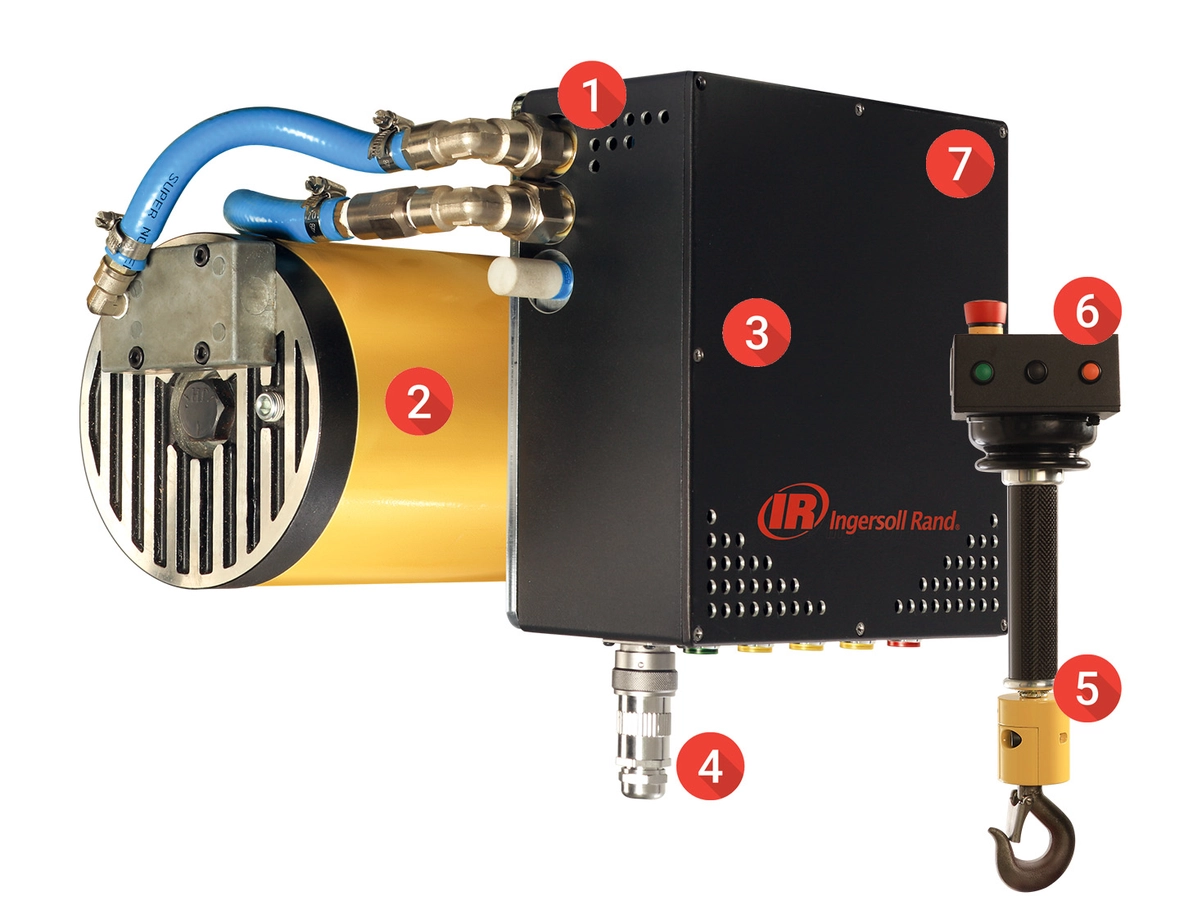

- OPTIONAL INTEGRATION: Control box software can be modified for specific lifting applications
- COMPATABILITY: Ability to add to any Ingersoll Rand® balancers with up to 500kg capacity
- PLUG & PLAY SOLUTION: Limits downtime with intuitive setup & no specific training needed
- OPTIMAL MANEUVERABILITY: Via handle or directly on the load once it has been lifted & stabilized
- FLEXIBILITY: Ability to integrate controls with ergonomic lift assist, with 3 available programmable inputs/outputs.
- OPTIMAL CONTROL & ERGONOMICS: Inline handle actuation without the need for push-button controls for optimal operator comfort.
- PRODUCTIVITY: With the addition of the electronic control box the system automatically balances different loads with instant load calculation.
Technical Data
Part Number | Description |
|---|---|
ZGW015080HM | Load capacity: 68 Kg, Wire rope stroke: 2 m, Top mount: Hook, Weight: 25 Kg |
ZGW015080A1 | Load capacity: 68 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA1, Weight: 25 Kg |
ZGW015080A2 | Load capacity: 68 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA2, Weight: 25 Kg |
ZGW020120HM | Load capacity: 90 Kg, Wire rope stroke: 3 m, Top mount: Hook, Weight: 31 Kg |
ZGW020120A1 | Load capacity: 90 Kg, Wire rope stroke: 3 m, Top mount: Trolley ZRA1, Weight: 31 Kg |
ZGW020120A2 | Load capacity: 90 Kg, Wire rope stroke: 3 m, Top mount: Trolley ZRA2, Weight: 31 Kg |
ZGW035080HM | Load capacity: 160 Kg, Wire rope stroke: 2 m, Top mount: Hook, Weight: 31 Kg |
ZGW035080A1 | Load capacity: 160 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA1, Weight: 31 Kg |
ZGW035080A2 | Load capacity: 160 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA2, Weight: 31 Kg |
ZGW050080HM | Load capacity: 225 Kg, Wire rope stroke: 2 m, Top mount: Hook, Weight: 52 Kg |
ZGW050080A1 | Load capacity: 225 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA1, Weight: 52 Kg |
ZGW050080A2 | Load capacity: 225 Kg, Wire rope stroke: 2 m, Top mount: Trolley ZRA2, Weight: 52 Kg |
Extend your possibilities, with a simple plug & play solution. The new Zero Gravity air balancer control kit has been designed to be installed on any new or existing Ingersoll Rand® air balancer. The Zero Gravity air balancer kit offers an intuitive solution for improved ergonomics, operator comfort, maneuverability, & productivity.
Understand the Zero Gravity Balancer in 3 Minutes!
Zero Gravity Air Balancer Control Kits
Defy Gravity to Have the Perfect Ergonomic Solution
